EOS AquaDisp – Automatic Sauna Infusion System

Professional automatic water infusion system for premium private and commercial saunas.

The EOS AquaDisp is a high-quality automatic sauna infusion system designed to deliver controlled amounts of water directly onto the sauna stones at programmed intervals. It provides a convenient and consistent way to create traditional Aufguss / sauna infusion experiences without manually pouring water over the heater.

The system is particularly suitable for modern and premium sauna installations, hidden sauna heaters, private wellness areas, hotels, spas and commercial wellness facilities where clean design, reliable operation and precise water dosing are important.

AquaDisp can operate automatically at preset intervals or be activated manually using the EOS push button. The system is compatible with selected EOS sauna control systems, including EOS Econ D4/H4, EmoTec, EmoStyle and EmoTouch 3.

Key Benefits

• Automatic sauna infusion / Aufguss system

• Controlled water delivery directly to the sauna heater stones

• Automatic operation at preset intervals

• Manual activation via the included EOS push button

• Stainless steel EOS water outlet / infusion nozzle

• Stainless steel dosing valve housing for durability

• Ideal for hidden sauna heaters

• Compatible with selected EOS sauna control systems

• Clean and discreet installation

• Suitable for private and commercial wellness facilities

• Designed and manufactured by EOS Saunatechnik, Germany

How EOS AquaDisp Works

AquaDisp automatically delivers a controlled amount of water to the sauna stones through a dedicated dosing line. The water temporarily increases humidity and creates the characteristic steam burst associated with a traditional sauna infusion.

Depending on the sauna concept, the system can be programmed to operate automatically at defined intervals or activated manually using the EOS push button.

This makes it possible to create a consistent sauna experience while reducing the need for manual water application.

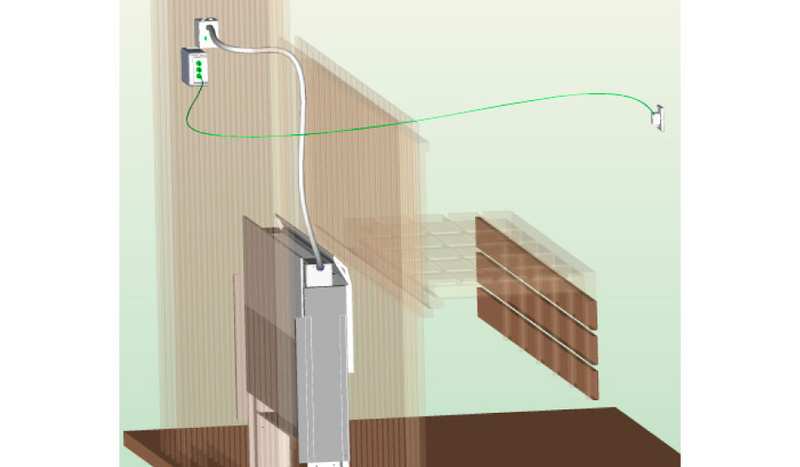

Designed for Hidden Sauna Heaters

EOS AquaDisp is particularly well suited to hidden or integrated sauna heaters, where the heater and stone compartment are concealed behind a sauna bench, wall or architectural structure.

The water is delivered directly to the stone compartment through the dedicated stainless steel outlet, allowing the visible sauna interior to maintain a clean and minimalist appearance.

Premium Stainless Steel Components

The AquaDisp system incorporates a stainless steel dosing valve housing and a dedicated water connection to the sauna heater. The supplied EOS stainless steel infusion nozzle / water outlet provides a durable and discreet solution for delivering water onto the sauna stones.

Manual or Automatic Operation

AquaDisp can be used for automatic water splashes at predefined intervals or manually activated via a push button.

The EOS push button with cover plate is supplied as part of this configuration, providing convenient control from inside or outside the sauna depending on the installation concept.

Compatibility

EOS AquaDisp is designed for use with compatible EOS sauna control systems, including:

• EOS Econ D4 / H4

• EOS EmoTec series

• EOS EmoStyle series

• EOS EmoTouch 3

For EOS Econ D1–D3 and H1–H3 control systems, an additional power adapter may be required.

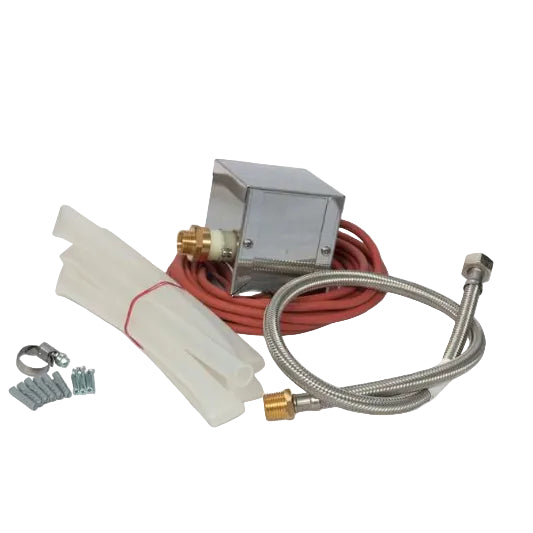

Delivery Scope

This Poolspacy configuration includes:

• EOS AquaDisp automatic sauna infusion system

• EOS electronic control unit

• Stainless steel dosing valve housing

• EOS stainless steel infusion nozzle / water outlet

• EOS manual push button with cover plate

• Connection cable

• Sauna bus cable

• Connection cable for the valve

• Silicone hose for connection to the sauna heater

• Flexible water connection

• Mounting accessories

• Installation and operating instructions

The standard AquaDisp system includes the control unit, stainless steel valve housing, connection cables, silicone hose and installation accessories. The EOS manual push button is specified as an accessory, and the stainless steel infusion outlet is configured for this Poolspacy package.

Technical Specifications

Professional Sauna Aufguss Experience

A traditional sauna infusion is one of the defining elements of the sauna experience. Water is gradually applied to the heated stones, temporarily increasing humidity and intensifying the sensation of heat.

With EOS AquaDisp, this process can be integrated into a modern sauna installation with controlled and repeatable water delivery. This is particularly valuable for professional wellness environments where consistent operation and a refined guest experience are essential.

For first-time sauna users, infusions can feel intense. The duration and intensity of an Aufguss should therefore always be adapted to the sauna environment and the individual guest's tolerance.

Ideal Applications

EOS AquaDisp is an excellent solution for:

• Premium private saunas

• Luxury villas

• Hotel saunas

• Spa and wellness centres

• Clubhouse wellness areas

• Commercial sauna facilities

• Hidden sauna heater installations

• Architectural and minimalist sauna interiors

• Professional Aufguss concepts

EOS AquaDisp combines German engineering, discreet installation and precise water delivery to create a sophisticated automatic sauna infusion experience.
