EOS EmoTec D Cloud Anthracite/Black – Premium Sauna Control Unit

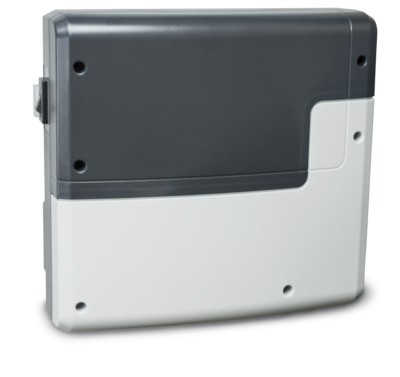

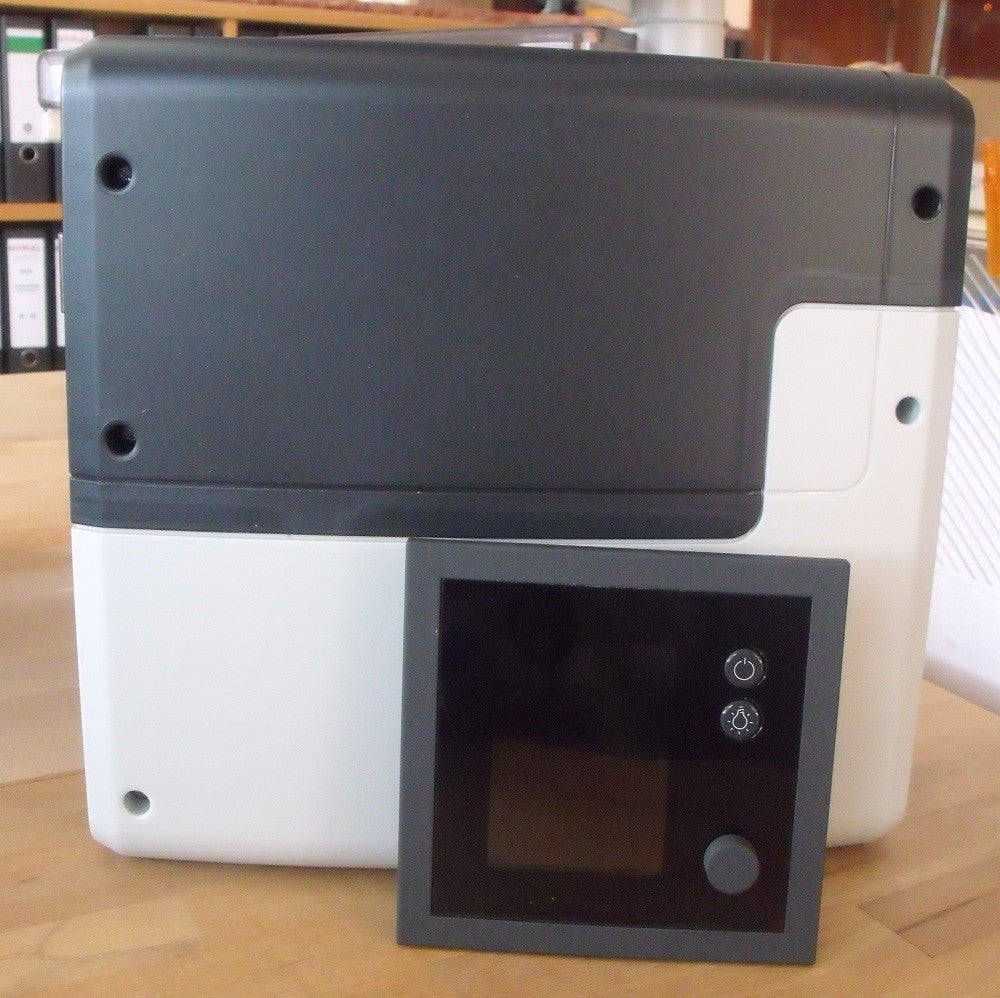

Premium digital sauna control with Wi-Fi, cloud connectivity, precise temperature regulation, and advanced programming. The EOS EmoTec D Cloud is a high-end control system for Finnish saunas, combining an elegant anthracite/black control panel, a separate relay box, and a digital temperature sensor.

Designed for demanding private and commercial sauna installations, the EmoTec D Cloud provides intuitive control through its jog-dial operation and TFT colour display, while built-in Wi-Fi and EOS Cloud connectivity allow remote operation and automatic software updates.

The system supports sauna heaters with a switching capacity of up to 10 kW. For higher-power sauna heaters, the switching capacity can be extended using a compatible EOS PEB power extension unit, making the system suitable for powerful sauna installations.

Key Features

• Premium Cloud Control: Wi-Fi and EOS Cloud connectivity for convenient remote control and access to the latest software updates.

• EOS Spa Control App: Control and monitor the sauna remotely using the EOS Spa Control App.

• For Finnish Saunas: Designed for dry Finnish sauna operation with a temperature control range of 30–115 °C.

• Powerful Heater Compatibility: Supports sauna heaters with a switching capacity of up to 10 kW. Higher-power heaters require a compatible EOS PEB power extension unit.

• Elegant Anthracite/Black Design: Premium dark finish designed to complement modern sauna interiors.

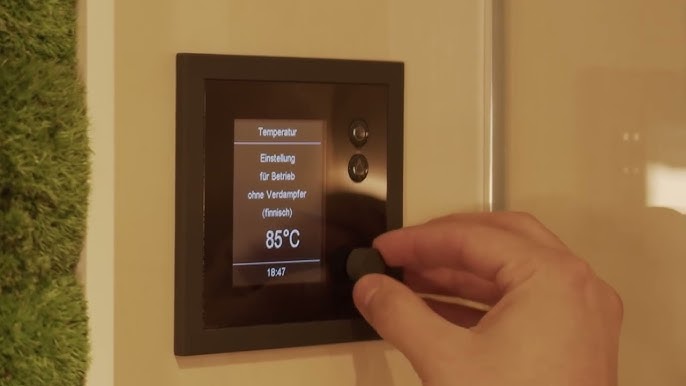

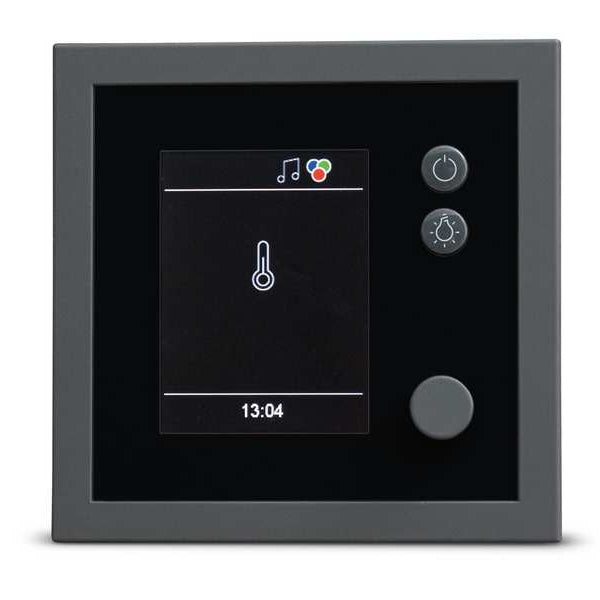

• Intuitive Operation: Compact TFT colour display with an ergonomic jog-dial control for quick and simple access to all functions.

• Flexible Installation: The control panel can be installed flush-mounted or surface-mounted and can be positioned up to 100 m from the sauna.

• Precise Temperature Control: Digital temperature sensor with a 5 m cable provides accurate and interference-resistant temperature measurement.

• Advanced Timer Functions: Includes a 24-hour preset timer and an extended weekly timer with up to four programs per day.

• Flexible Heating Time: Selectable heating time limitation of 6 hours, 12 hours, or unlimited operation.

• Lighting Control: Integrated 230 V dimmable cabin light output.

• Ventilation Control: Integrated 230 V fan output with support for three-speed ventilation.

• Safety Functions: Holiday-home mode, display lock, PIN-protected service settings, and optional door-contact safety system.

• Optional Expansion: Additional EOS modules can provide functions such as coloured LED lighting, music control, and remote start/operation.

Technical Specifications

• Model: EOS EmoTec D Cloud

• Item No.: 949348

• Colour: Anthracite / Black

• Sauna Type: Finnish sauna

• Temperature Control Range: 30–115 °C

• Maximum Switching Capacity: 10.0 kW resistive load

• Power Extension: EOS PEB 10 / PEB 18 / PEB 36 for higher-power heaters

• Electrical Connection: 400 V 3N ~ 50/60 Hz

• Heating Time Limitation: 6 h / 12 h / Unlimited

• Start Time Pre-selection: 24-hour timer / weekly timer

• Temperature Sensor: Digital, 5 m cable included

• Optional Bench Sensor: Supported

• Cabin Light Output: 230 V / 5–100 W, dimmable

• Fan Output: 230 V / max. 150 W

• Control Panel Dimensions H/W/D: 127 × 130 × 25 mm

• Relay Box Dimensions H/W/D: 270 × 300 × 100 mm

• Installation: Flush or surface-mounted control panel; wall-mounted relay box

• Wi-Fi: Integrated

• Cloud Connectivity: EOS Cloud

• Mobile Control: EOS Spa Control App

EOS EmoTec D Cloud Anthracite/Black is an excellent choice for premium private and commercial saunas where advanced control, remote access, elegant design, and reliable German engineering are essential. With integrated Wi-Fi and EOS Cloud connectivity, the system provides convenient remote operation and keeps its software up to date. For powerful sauna heaters above the standard 10 kW switching capacity, an appropriate EOS PEB power extension unit can be added.

The EOS EmoTec D Cloud is suitable for premium private and commercial sauna projects. See our Sauna Projects for examples of EOS equipment integrated into custom sauna installations.
